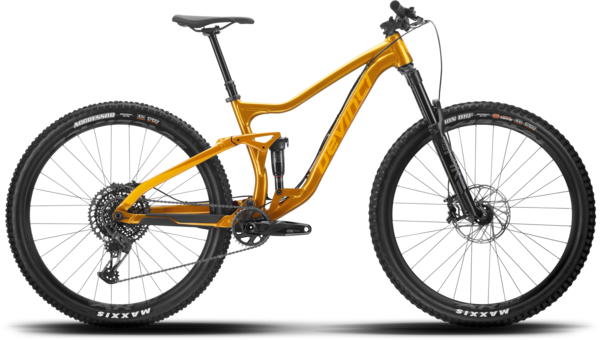

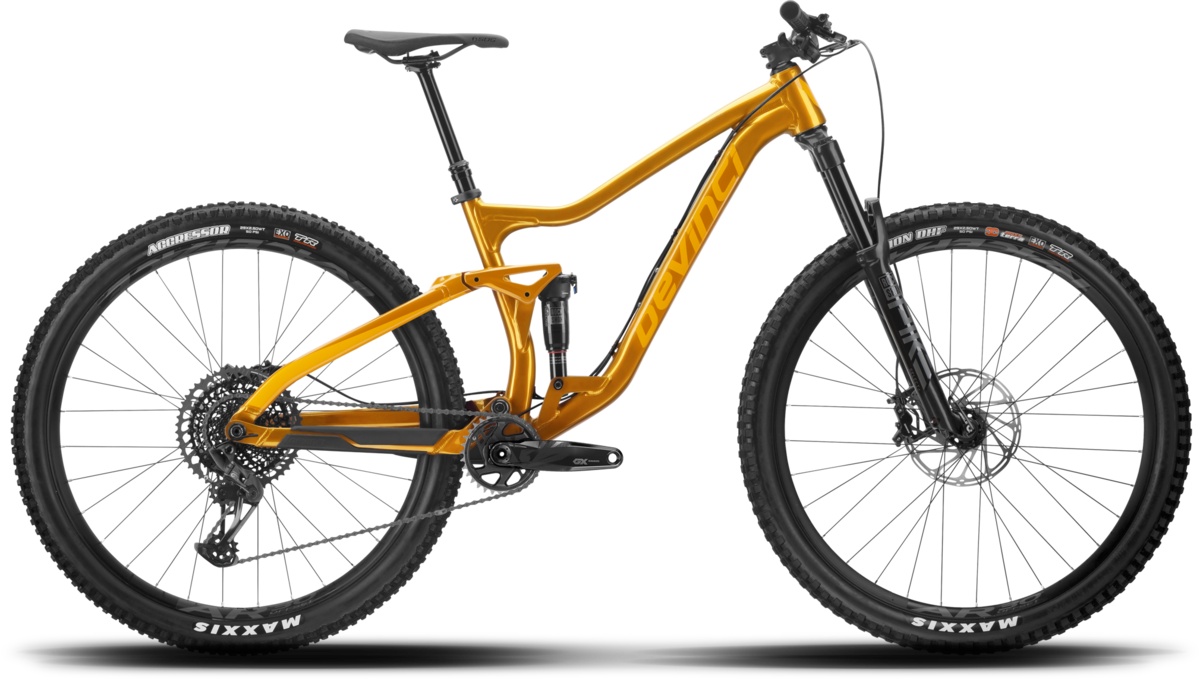

Devinci Django GX 12s

Devinci Django GX 12s
  • Color: Dream Orange
  • Color: Portal Blue
$2,795.00 - $4,000.00
$4,000.00
Color:
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

Light, lively Split-Pivot Django brings unstoppable stoke to a tangle of trail types. This capable short-travel machine shines on climbs while bringing adept handling to gnarled, technical turf. Superboost 157 rear spacing combined with 29x2.6 tire clearance accentuates its punchy, aggressive powers on rolling terrain. Relocated adjustable geo flip chips mean less moving parts and simple on-the-fly adjustability. And threaded BBs make for easy maintenance, while molded chainstay and downtube protection helps buck rocks and loose debris. Jump on the fun-hogging Django 29 today and find your happy place — everywhere you ride.

Sizes:
SIZEX-SmallSmallMediumLargeX-Large
A - Seat Tube (MM) | HI/LO 380 / 380 400 / 400 430 / 430 465 / 465 500 / 500
B - Seat Tube Angle (°) | HI/LO 77.6 / 78.1 77.6 / 78.1 77.4 / 77.9 77.3 / 77.8 77.1 / 77.6
C - Head Tube Angle (°) | HI/LO 66.5 / 67 66.5 / 67 66.5 / 67 66.5 / 67 66.5 / 67
D - Top Tube (MM) | HI/LO 546 / 544 566 / 564 590 / 588 614 / 612 637 / 636
E - Reach (MM) | HI/LO 410 / 416 430 / 436 450 / 457 470 / 475 490 / 495
F - Chain Stay (MM) | HI/LO 435 / 433 435 / 433 435 / 433 440 / 438 445 / 443
G - Wheelbase (MM) | HI/LO 1144 / 1143 1164 / 1163 1188 / 1187 1217 / 1216 1246 / 1245
H - BB Height (MM) | HI/LO 333 / 339 333 / 339 333 / 339 333 / 339 333 / 339
I - Standover Height (MM) | HI/LO 730 / 737 735 / 742 736 / 744 762 / 769 785 / 792
J - Stack (MM) | HI/LO 618 / 614 618 / 614 627 / 623 636 / 632 645 / 641
K - Head Tube (MM) | HI/LO 95 / 95 95 / 95 105 / 105 115 / 115 125 / 125
Rider Height (CM) 147-160 157-170 168-180 178-187 185-193
BBD (MM) | HI/LO 41 / 35 41 / 35 41 / 35 41 / 35 41 / 35
RAKE (MM) | HI/LO 51 / 51 51 / 51 51 / 51 51 / 51 51 / 51
TRAIL (MM) | HI/LO 108 / 103 108 / 103 108 / 103 108 / 103 108 / 103
Fox Transfer (MM) 100 125 150 150 150
RS Reverb (MM) 100 125 150 170 170
Sizes:
SIZEX-SmallSmallMediumLargeX-Large
CM 147-160 157-170 168-180 178-187 185-193
INCHES 4'10" - 5'3" 5'3" - 5'7" 5'7" - 5'11" 5'11" - 6'2" 6'2" - 6'4"

Specs

Frame Aluminum Optimum G04 120mm
Fork RockShox Pike Select+ Charger 3 RC2 Db 140 | 1T | 44 Offset
Rear Shock Rockshox Deluxe Select+ RL Debonair | 3T | 190x45
Rims RaceFace AR30 | 30mm inner | TR
Hubs Front: Factor XD601SB/A | 6bolts | TA 15x110mm
Rear: Factor XDH62SB/A | 6bolts | TA 12x157mm | XD
Spokes Sapim Stainless 14G w/Nylok
Tires Front: Maxxis Minion DHF | 29x2.5wt | 3C EXO TR
Rear: Maxxis Aggressor | 29x2.5wt | EXO TR
Bottom Bracket SRAM DUB | BSA | 73mm
Chainrings SRAM GX Eagle | DUB | 32T | SuperBoost 157
Shifters SRAM GX Eagle | 12s
Rear Derailleur SRAM GX Eagle | 12s
Cassette/Freewheel SRAM XG1275 | 12s | 10-52T | XD
Chain SRAM NX Eagle | 12s
Brakes SRAM G2 RS | 4 Pistons
Handlebars RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
Tape/Grips Devinci Performance | w/lock-on
Stem V2 Pro | B:35mm | L:50mm | 0°
Headset FSA Orbit | 1.5 | Zero Stack
Seatpost TranzX Dropper | 31.6mm | 1x Lever
Saddle SDG FLY MTN
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Dream Orange / X-Small 883385215562 FV23013124
Dream Orange / Small 883385215609 FV23013224
Dream Orange / Medium 883385215647 FV23013324 210000004291
Dream Orange / Large 883385215685 FV23013424
Dream Orange / X-Large 883385215722 FV23013524
Portal Blue / X-Small 883385215555 FV23013121
Portal Blue / Small 883385215593 FV23013221
Portal Blue / Medium 883385215630 FV23013321
Portal Blue / Large 883385215678 FV23013421
Portal Blue / X-Large 883385215715 FV23013521
